Description

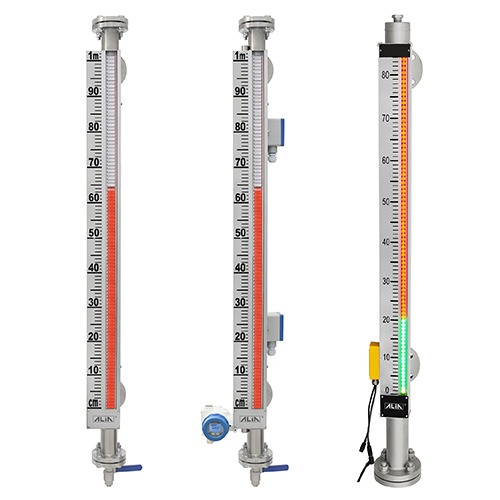

The AML260 Series Bypass Level Indicator consists of a bypass, float, and magnetic indicator assembly. The float has a built-in permanent magnet, floating along with the liquid surface, without the need for an external power supply. According to the principle of buoyancy and magnetic coupling, the colours on the magnetic indicator change based on the float movements, thereby visually displaying the level in a container. It can also be used with a level alarm switch and level transmitter, enabling long-distance level indication, detection, control, and logging. Widely used in medicine, the chemical industry, petroleum, sewage, and other fields.
Feature
On-site level indicator functions without power sources
Continuous level measurement, independent of changes in the physical and chemical properties of the medium.
Safe for corrosive, flammable, high-pressure applications
Transmitter and switch options that can be installed
Rugged design – low or no maintenance
The design temperature range is from -196 °C to +450 °C
Feature
On-site level indicator functions without power sources
Continuous level measurement, independent of changes in the physical and chemical properties of the medium.
Safe for corrosive, flammable, high-pressure applications
Transmitter and switch options that can be installed
Rugged design – low or no maintenance
The design temperature range is from -196 °C to +450 °C
