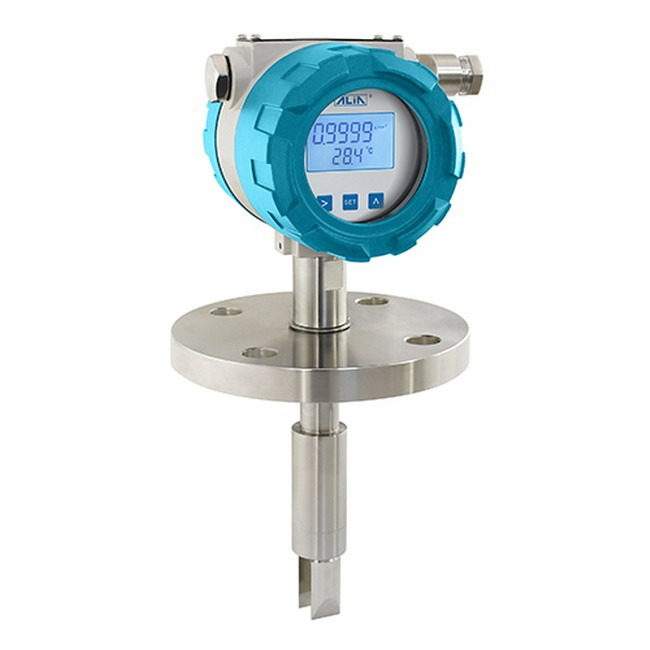

ALIA Tuning Fork Vibrating Density Meter AVD600

The AVD600 Series tuning fork vibrating density meter is designed based on the principle of fork vibration, with high accuracy and high stability. By measuring the vibration frequency after the fluid flows through the fork, the density of the fluid can be calculated. The fork has a built-in temperature sensor, enabling temperature compensation for density measurements. It can be used in process control where density or concentration is the primary parameter. This product is easy to maintain and can measure the density of fluids that contain small amounts of bubbles or that are uniformly mixed.



Feature:

Use an industrial-grade high-performance integrated circuit, with high accuracy, good stability and strong anti-interference capacity

Measurements are unaffected by viscosity, pressure, conductivity

Plug-and-play, used for monitoring & controlling continuous measurements

Multiple material options for wetted parts, suitable for corrosive applications

4-20 mA and RS485 output for convenient process control

Density and concentration measurements can be performed as required

With a built-in temperature sensor for automatic temperature compensation

Available in compact, remote & immersion versions for diverse applications

Optimized fork design offers excellent resistance to bubbles and material buildup, enabling measurement of slurries containing small amounts of solid particles
